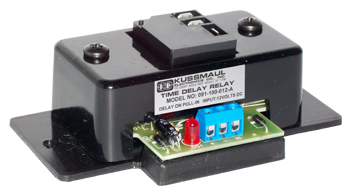

Time Delay Relay - DOPI, Model #: 091-100-012-A
time delay relay
Blue Bullet 30 Amp Relay Contact Rating
Blue Bullet Relay Closes at Some Delay After Being Energized
Blue Bullet Time Delay is Field Adjustable
Blue Bullet Trigger from Either +12 Volts or Ground
Blue Bullet Easy Installation
Blue Bullet 3 Year Warranty
The Model 091-100-12-A, Time Delay Relay, is designed to delay the operation of a device for a definite time interval after energizing some other equipment. A typical operation might be to delay a circulation blower upon starting an air conditioner or delaying an electrical load until after the vehicle's engine has started. Thirty ampere, both normally open and normally closed output contacts are provided. A switch selects the polarity of the input signal that starts the time delay. In one position, +12 volts starts the timing cycle, while in the other a ground signal initiates the timer. At the completion of the time interval the output relay is energized.
gray border
gray border
gray border
gray border
  • Model "A"
    Specifications
  • Model "B"
    Specifications
  • Instruction
    Manuals
Input: 12 Vdc
Time Delay Setting: 5 Seconds
Time Delay Range: 1.5 to 15 Seconds
Relay Contacts: 30 Amps
Weight: .25 lbs
Warranty: 3 Years






Input: 12 Vdc
Time Delay Setting: 60 Seconds
Time Delay Range: 11 to 120 Seconds
Relay Contacts: 30 Amps
Weight: .25 lbs
Warranty: 3 Years






Time Delay Relay, Model A, 091-100-012-A.pdf (28 Kb)

Time Delay Relay, Model B, 091-100-012-B.pdf (28 Kb)









outline drawing 015
