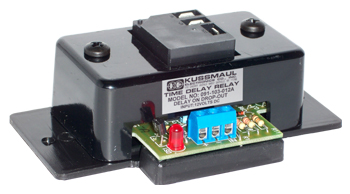

Time Delay Relay - DODO, Model #: 091-103-012-A
time delay relay
Blue Bullet 30 Amp Relay Contact Rating
Blue Bullet Relay Closes Immediately and Remains Closed for a Time Period After Being Energized
Blue Bullet Time Delay is Field Adjustable
Blue Bullet Easy Installation
Blue Bullet 3 Year Warranty
The Model 091-103-012-A, Time Delay Relay, is designed to keep a load energized for some time interval after the load is de-energized. A typical application might be the control of lighting in the interior of the vehicle to permit operators' time for cleaning or maintenance. Thirty ampere, both normally open and normally closed output contacts are provided. The device requires 3 input connections. +12 volts power and ground to operate the relay, and a +12 volt signal. When the signal is applied the relay closes immediately. When the signal is removed, the relay remains energized for the length of the time interval. See below for all models available.
gray border
gray border
gray border
gray border
  • Model
    "A"
  • Model
    "B"
  • Model
    "C"
  • Model
    "D"
  • Model
    "E"
  • Model
    "F"
  • Instruction
    Manuals
Input: 12 Vdc
Time Delay Minimum: 1.5 Minutes
Time Delay Maximum: 6 Minutes
Time Delay Set Point: 3 Minutes
Relay Contacts: 30 Amps
Weight: .25 lbs
Warranty: 3 Years





Input: 12 Vdc
Time Delay Minimum: 6 Minutes
Time Delay Maximum: 27 Minutes
Time Delay Set Point: 15 Minutes
Relay Contacts: 30 Amps
Weight: .25 lbs
Warranty: 3 Years





Input: 12 Vdc
Time Delay Minimum: 12 Minutes
Time Delay Maximum: 60 Minutes
Time Delay Set Point: 30 Minutes
Relay Contacts: 30 Amps
Weight: .25 lbs
Warranty: 3 Years





Input: 12 Vdc
Time Delay Minimum: 4 Seconds
Time Delay Maximum: 15 Seconds
Time Delay Set Point: 10 Seconds
Relay Contacts: 30 Amps
Weight: .25 lbs
Warranty: 3 Years





Input: 12 Vdc
Time Delay Minimum: 2 Seconds
Time Delay Maximum: 3.3 Seconds
Time Delay Set Point: 2 Seconds
Relay Contacts: 30 Amps
Weight: .25 lbs
Warranty: 3 Years





Input: 12 Vdc
Time Delay Minimum: .5 Seconds
Time Delay Maximum: 1.8 Seconds
Time Delay Set Point: 1 Second
Relay Contacts: 30 Amps
Weight: .25 lbs
Warranty: 3 Years





Time Delay Relay, Model A, 091-103-012-A.pdf (30 Kb)

Time Delay Relay, Model B, 091-103-012-B.pdf (30 Kb)
Time Delay Relay, Model C, 091-103-012-C.pdf (30 Kb)
Time Delay Relay, Model D, 091-103-012-D.pdf (30 Kb)
Time Delay Relay, Model E, 091-103-012-E.pdf (30 Kb)
Time Delay Relay, Model F, 091-103-012-F.pdf (30 Kb)





outline drawing 015
