Auto Charge 11, Model #: 091-11-12

auto charge 11
  • 10A, 12V charge rating
  • Automatically charges dual battery banks utilizing independent sense circuits that control voltage and current to each battery, thus parasitic loads on one battery have no effect on the second
  • Front panel amp meter indicates total output current
    Optional Remote Bar Graph display or LED indicator
  • Full amperage output is available to either battery if the adjacent bank does not require charging, thus optimizing use of available power when charging banks with differing parasitic load rates
  • UL recognized
  • 3 year warranty

  • Auto Charge 11
    Specifications
  • Downloadable
    Files
  • Optional
    Indicators
  • Other
    Voltages
  • Outline
    Drawing
  • Related
    Products
Input: 120 Vac, 50/60 Hz, 2.5 Amps Max
Input Fuse: 3 Amps, Fast Acting
Output: 12 Vdc, 10 Amps
Output Fuse (Recommended): 20 Amps
Charge Indicator: 0-15 Amps
Weight: 12 lbs
Warranty: 3 Years






Datasheet.pdf (748 Kb)
Instruction Manual, 12 Volt.pdf (267 Kb)
Instruction Manual, 24 Volt.pdf (267 Kb)
Product Specifications.doc (3,735 Kb)

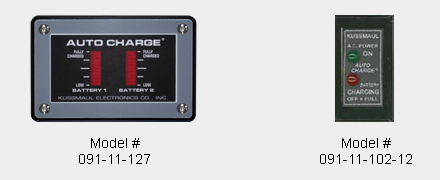

optional indicators dual bar graph display led indicator



Auto Charge 11, 24 Volts, 6 Amps - 091-11-24












outline drawing 091-11-12
Auto Charge Status Center - 091-189-12
Auto Charge Precision Status Center - 091-189-12-3.5D
120 Volt Auto Pump - 091-9B-1
120 Volt Auto Pump with Auto Drain - 091-9B-1-AD
WP Auto Eject, 15 Amp - 091-18WP-120
WP Auto Eject, 20 Amp - 091-20WP-120
Super Auto Eject, 15 Amp - 091-55-15-120
Super Auto Eject, 20 Amp - 091-55-20-120






The Auto Charge 11 is a fully automatic battery charger for vehicles with dual battery systems. This new and improved unit contains two completely independent chargers to sense and control the current to the batteries. Thus parasitic loads on one battery have no effect on the second battery. Total output current is limited to protect the charger but may be supplied to either battery if the adjacent battery does not require it. Normally the current output is proportioned between the two batteries as required. An output is provided to permit the installation of the optional remote displays. The remote displays are not required for the operation of the charger, but they permit customizing the individual installation.
