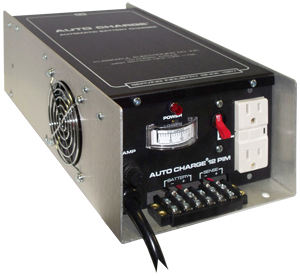

Auto Charge 12 PIM, Model #: 091-12PIM
auto charge 12 pim
Blue Bullet 12 Amps for Charging Vehicle Batteries
Blue Bullet Automatically Charges Battery
Blue Bullet G.F.I. & 15 Amp Circuit Breaker
Blue Bullet Remote Voltage Sensing
Blue Bullet Designed Specifically for Vehicles with Single Battery Systems
Blue Bullet Amp meter Indicates Charge Rate
Blue Bullet No Water Boil Off
Blue Bullet 3 Year Warranty
The Auto Charge 12 PIM is a fully automatic battery charger with a separate Ground Fault Interrupter and 15 amp circuit breaker for vehicles with a single battery system. Remote voltage sensing is provided to compensate the charger output for the voltage drop in the charging wires. It is ruggedly constructed for mounting in the vehicle.
gray border
gray border
gray border
gray border
  • Charger
    Specifications
  • Instruction
    Manuals
  • Related
    Products
Input: 120 vAC, 50/60 Hz, 2.5 Amps Max
Input Fuse: 5 Amps, Fast Acting
Output: 12 Vdc, 12 Amps
Output Fuse (Recommended): 24 Amps
Charge Indicator: 0-15 Amps
Weight: 13 lbs
Warranty: 3 Years
Printable Datasheet.pdf (693 Kb)




Auto Charge 12 PIM, 12 Volt - 091-12PIM.pdf (83 Kb)
