Model # 091-133
|
|
|
|
|
|
|
|
|
|
|
|
 |
Exhaust Fan Controller |
|
Garage Door Opener |
|
Traffic Light Operator |
|
Vehicle Bay Lighting Control |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| The

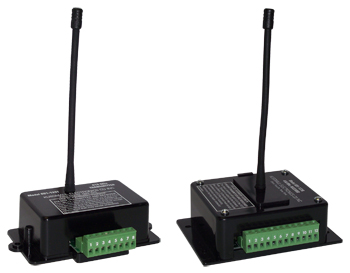

Transmitter/Receiver is a remote control system between a vehicle and a building.
It is designed to activate various electrical systems in the building when signaled
from the vehicle. A single channel is provided to start an exhaust fan before
a vehicle is started. Three additional outputs of the receiver can be connected
to interface with a door opener that has a pushbutton control to OPEN, CLOSE
and STOP the door. Many other devices may also be operated, the receiver, however,
is limited to 4 outputs. Multiple transmitters may operate a single receiver
or multiple transmitters may each operate their own receiver. Dip switches in
the transmitter and receiver are provided to match the transmitter to the receiver.
Thirty-two different codes are possible permitting a single installation to
have up to 32 vehicles. |
|
| Specifications:
|
| Transmitter,
Model # 091-133-T: |
| Input power:
12 volts, .015 amp |
| Frequency:
418 MHz |
| Output Channels:
4 |
| Trans. Codes:
32 |
| Range: typical
120 feet |
| |
| Receiver, Model
# 091-133-R: |
| Input power:
120 volts, 50/60 Hz, .015 amp |
| Frequency:
418 MHz |
| Output Channels:
4 |
| Trans. Codes:
32 |
| |
| Outline
Drawing |
| Instruction
Manual (.pdf file, 133Kb) |
|
|
 |
 |
 |
 |
|
 |
|
 |
|
 |
|
 |
|
 |
|
 |
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
