Automatically
Transfers Load from Shore Line Power to Generator Power |
|
20
Amp Capacity |
|
Indicates
Source of Power |
|
Easy
Installation |
| |
|

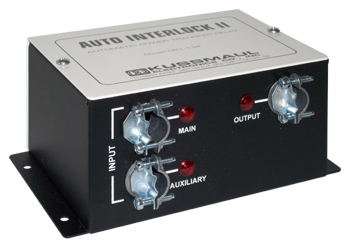

| The
Auto Interlock II is a power transfer relay which automatically transfers
the 120 volt A.C. from the shoreline to the auxiliary generator when
the generator is started. Easy to install, indicator lights are provided
to indicate which input is active and is being supplied to the load.
Once installed, operation is automatic and does not require an operator's
intervention. As soon as the generator is started, the relay removes
the load from the shoreline input and applies it to the generator.
When the generator is shut down, the load is returned to shore power.
|
| |
|
| Specifications:
|
| Voltage:
120 volts, 50/60 Hz. |
| Current
Capacity: 20 amps max. |
| Weight:
2 lbs. |
| Warranty:
3 Years |
| |
| Outline
Drawing |
| Instruction
Manual (.pdf file, 88Kb) |
