Powers
Sensitive Electronic Equipment |
|
Regulates
Voltage |
|
Provides
Low Ripple D.C. |
|
Filters
Output of Battery Saver |
| |
|

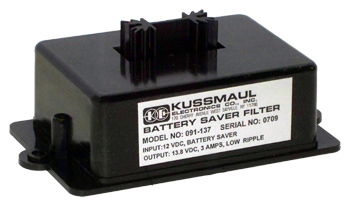

| The
BATTERY SAVER FILTER is a small, highly reliable switching power converter
designed to provide filtered and regulated D.C. voltage to sensitive
electronic equipment. The low ripple output voltage ensures noise-free
operation of even the most sensitive devices. Short circuit protection
is provided to protect from damaging overloads or shorting the output
to ground. This device is especially useful when certain flashlight
chargers are connected to the full wave rectified voltage supplied
by a battery saver. |
| |
|
| Specifications:
|
| Input:
12 to 15 volts, D.C. Battery, 12 volts D.C. Battery Saver |
| Output:
13.8 volts, +/- .1 volts |
| Output
Ripple: 15 mv. RMS max. |
| Output
Current: 3 amps. max. |
| Warranty:
3 Years |
| |
| Outline
Drawing |
| Instruction
Manual (.pdf file, 15Kb) |
