Euro Charger II VHO, Model #: 091-143-12
euro charger II VHO
Blue Bullet 40 Amps for Charging Vehicle Batteries
Blue Bullet Automatically Charges Dual Banks of Batteries
Blue Bullet Very High Output, Faster Battery Recharge
Blue Bullet Designed to Meet CE Requirements
Blue Bullet Input Voltage Selectable, 115 or 230 Volts
Blue Bullet 3 Year Warranty
The Euro Charger II VHO is a fully automatic, dual high output battery charger, designed to meet CE requirements. Ruggedly constructed to be mounted anywhere on the vehicle. Extremely precise voltage control maintains the charger output constant with variations in load or line voltage input. Active current limiting, limits the output current so as not to exceed its rated value when charging deeply discharged batteries, or if the vehicle is started while charging. Two unique remote displays are available as options for this charger. One provides a simple, two LED display. A green LED indicates that power is ON while a red LED indicates that output current is flowing from the charger. A second display, a dual bar graph, provides a graphic display of the charger output voltage. The optional remote bar graph indicator for this charger has dual bar graphs, one for each battery.
gray border
gray border
gray border
gray border
  • Charger
    Specifications
  • Instruction
    Manuals
  • Optional
    Indicators
  • Other
    Voltages
  • Related
    Products
Input: 120/ 230 Vac, 50/60 Hz, 10/5 Amps Max
Input Fuse: 12 Amps, Fast Acting
Output: 12 Vdc, 40 Amps
Output Fuse (Recommended): 80 Amps
Charge Indicator: 0-50 Amps
Weight: 22 lbs
Warranty: 3 Years
Printable Datasheet.pdf (729 Kb)




Euro Charger II VHO, 12 Volt - 091-143-12.pdf (153 Kb)

Euro Charger II VHO, 24 Volt - 091-143-24.pdf (153 Kb)

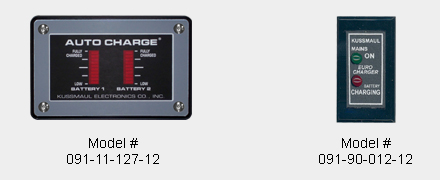

optional indicators dual bar graph display led indicator
Euro Charger II VHO, 24 Volts, 20 Amps - 091-143-24











Auto Charge Dual Status Center - 091-189-2-12
Auto Charge Dual Precision Status Center - 091-189-12-2-3.5D
WP Auto Eject, 15 Amp - 091-18WP-012
Super Auto Eject, 15 Amp - 091-55-15-DC
Super 16 Auto Eject, 16 Amp - 091-182-230-12







outline drawing
