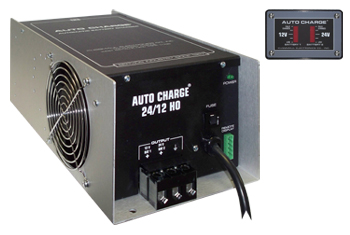

Auto Charge 24/12 HO, Model #: 091-175
auto charge 24 12 ho
Blue Bullet Dual Voltage, High Output Charger
Blue Bullet Two Independent Automatic Battery Chargers
Blue Bullet Outputs are Current Limited to Protect the Charger
Blue Bullet Remote Dual Bar Graph Indicator
Blue Bullet Rugged Construction for Vehicle Mounting
Blue Bullet No Water Boil Off
Blue Bullet 3 Year Warranty
gray border
gray border
gray border
gray border
  • Charger
    Specifications
  • Instruction
    Manuals
  • Related
    Products
Input: 115 Vac, 60 Hz, 7 Amp Max
Input Fuse: 12 Amps, Fast Acting
Output Battery 1: 12 Vdc, 25 Amps
Output Battery 2: 24 Vdc, 6 Amps
Output Fuse (Recommended): Battery 1 - 50 Amps, Battery 2 - 12 Amps
Power Indicator: Indicates Input Power Applied
Charge Indicator: Remote Dual Bar Graph Display
Weight: 23 lbs
Warranty: 3 Years
Printable Datasheet.pdf (676 Kb)


Auto Charge 24/12 HO, 12 Volt - 091-175.pdf (518 Kb)











Remote Dual Bar Graph Display - 091-175-022
120 Volt Auto Pump - 091-9B-1
120 Volt Auto Pump with Auto Drain - 091-9B-1-AD
WP Auto Eject, 15 Amp - 091-18WP-120
WP Auto Eject, 20 Amp - 091-20WP-120
Super Auto Eject, 15 Amp - 091-55-15-120
Super Auto Eject, 20 Amp - 091-55-20-120





outline drawing
This charger is designed for use in vehicles that have a primary 12 volt electrical system but have a separate battery for the 24 volt components. Each system is sensed individually and the batteries are charged as much as required. A unique patented, voltage sensing circuit senses the actual battery voltage while ignoring the voltage drop in the charging wires. This ensures accurate battery recharging and maintains any parasitic loads that might be present. An electronic current limiter in each charger limits the output current when charging deeply discharged batteries or if there are inadvertent loads applied to the battery while charging.
