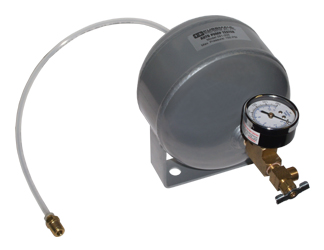

Auto Pump Tester, Model #: 091-205
auto pump tester
Blue Bullet 150 PSI Max
Blue Bullet used to test operation
Blue Bullet used to test pump valve leakage
Blue Bullet used to test and adjust pressure switch
Blue Bullet simple and easy to use
Blue Bullet 1 year warranty
gray border
gray border
gray border
gray border
  • Auto Pump Tester
    Specifications
  • Instruction
    Manual
  • Related
    Products
Maximum Pressure: 150 PSI
Input Hose: 1/4 Inch Diameter
Input Hose Length: 18 Inches
Input Hose Fitting: 1/4 NPT Male
Weight: 9 lbs
Warranty: 1 Year






Auto Pump Tester - 091-205.pdf (62 Kb)











Auto Pump 12 Volt - 091-9
Auto Pump 12 Volt with Auto Drain - 091-9-AD
Auto Pump 12 Volt HP, Vertical Mount - 091-9-12V-HP-VER
Auto Pump 12 Volt HP, Horizontal Mount - 091-9-12V-HP-HOR
Auto Pump AC - 091-9B-1
Auto Pump AC with Auto Drain - 091-9B-1-AD
Auto Pump HP - 091-9HP
Auto Pump HP with Auto Drain - 091-9HP-AD




outline drawing
In the repair and servicing of the Auto Pump it is necessary to measure the pump's capacity, that is, how quickly will the pump pressurize a given tank. Also it's important to measure the maximum pressure that can be attained. Leaking seals and gaskets will limit the maximum pressure as will dirty or warn valves.
A service technician will normally want to measure the pressure at which the pressure switch turns OFF the pump and when the pressure drops, to measure the pressure at which the pump is restarted. The AUTO PUMP TESTER contains a pressure gauge to measure pump output pressure and a "bleeder valve" to reduce tank pressure to determine the pump startup point.
