Senses
High Currents up to 100 Amps |
|
Operates
a Single Indicator from Many Loads |
|
Sense
Lines Electrically Isolated |
|
Available
with Flashing or Non-Flashing Outputs |
|
Economical Installation |
|
3
Year Warranty |
| |
|

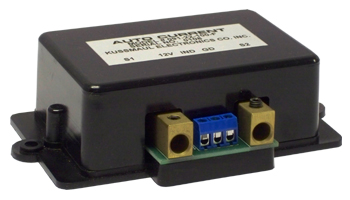

| The
Auto Current 100 detects current and closes a switch when the sensed
current flows. Designed for use in high current applications, the
device can be installed in circuits carrying up to 100 amps D.C. and
will provide a current flow indication whenever the current exceeds
4 amperes. As in all Auto Currents, the sense cirucit is electrically
isolated from the 12-volt output circuit. This permits detecting current
in the supply conductor or the return line whichever is more convenient.
This unit is similar in operation to all other models of the Auto
Current and may be used when higher currents are encountered. |
| |
| Ordering Information |
| Outline
Drawing |
| Instruction
Manual (.pdf file, 67Kb) |
