Kussmaul Electronics Co., Inc. Auto Current F

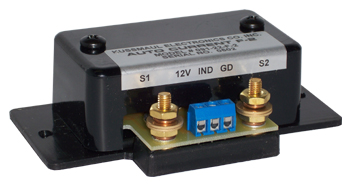

Auto Current F, Model #: 091-22F-2

	Senses Current Flow
	Provides Remote Indication
	Simplifies Vehicle Wiring
	Single Indicator Operated from Many Loads
	Economical Installation
	3 Year Warranty

The Auto Current F detects current, and closes a switch when the sensed current flows, to provide a remote indication. Designed for applications where a remote indicator must be illuminated when one or more lights or other loads are energized. By detecting load current, any number of lamps, or any other loads, will cause the indicator to light. The indicator circuit may be completely isolated from the circuit being sensed, or may be operated from the same battery. A timer is incorporated with a load relay to flash the indicator lamp at 1 second intervals to provide a more "attention getting" display.
All units are available as -G for operating indicator by grounding.

Model
091-22F-2
Model
091-22F-3
Model
091-22F-5
Model
091-22F-6
Instruction
Manuals

Input: 12 Vdc
Resistance: 0.01 Ohms
Minimum Operating Amps: 1 Amp
Maximum Operating Amps: 30 Amps
Switch Rating: 5 Amps
Weight: .25 lbs
Warranty: 3 Years

Input: 12 Vdc
Resistance: 0.01 Ohms
Minimum Operating Amps: 0.5 Amps
Maximum Operating Amps: 30 Amps
Switch Rating: 5 Amps
Weight: .25 lbs
Warranty: 3 Years

Input: 12 Vdc
Resistance: 0.02 Ohms
Minimum Operating Amps: 0.25 Amps
Maximum Operating Amps: 10 Amps
Switch Rating: 5 Amps
Weight: .25 lbs
Warranty: 3 Years

Input: 12 Vdc
Resistance: 0.02 Ohms
Minimum Operating Amps: 0.10 Amps
Maximum Operating Amps: 4 Amps
Switch Rating: 5 Amps
Weight: .25 lbs
Warranty: 3 Years

Auto Current - F-2, 091-22F-2.pdf (51 Kb)

Auto Current - F-3, 091-22F-3.pdf (51 Kb)
Auto Current - F-5, 091-22F-5.pdf (51 Kb)
Auto Current - F-6, 091-22F-6.pdf (51 Kb)

Auto Current - F-2-G, 091-22F-2-G.pdf (55 Kb)
Auto Current - F-3-G, 091-22F-3-G.pdf (55 Kb)
Auto Current - F-5-G, 091-22F-5-G.pdf (55 Kb)
Auto Current - F-6-G, 091-22F-6-G.pdf (55 Kb)
