Automatically
Sequences Lights ON and OFF |
|
Eliminates
Power Surges in Electrical System |
|
Controls
Lamp Relays |
|
Easy
Installation |
| |
|
| The

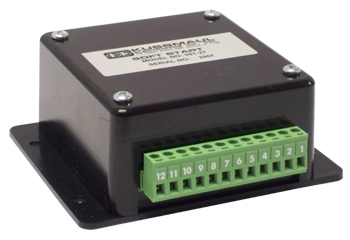

"Soft Start" is a precision, solid-state controller, which
sequentially switches "ON" seven loads at l/2 second intervals.
Individual switches, which the user may install, can select a combination
of outputs. These switches may be used to turn the outputs "ON"
or "OFF" at any time. The "Master Control" switch
starts the sequential switching when it is turned "ON".
Likewise turning the "Master Control" switch "OFF"
sequentially de-energizes the loads at l/2 second intervals. A plug-in
connector simplifies installation.
|
| Sequential
switching of lamp loads is particularly important in vehicles with
many lights. A "Master Control" switch that simultaneously
energizes a large number of lights can momentarily reduce the vehicle's
voltage. Similarly the simultaneous removal of these loads can cause
high alternator output voltage transients, which may damage sensitive
electronic equipment. The "Soft Start" sequencer assures
that loads are applied and removed gradually, thus eliminating the
possibility of inducing failures in the vehicle's equipment. |
| |
