Model # 091-31-12
|
 |
Automatically Charges Battery |
|
Can Not Over Charge Battery |
|
Designed Specifically for Small Batteries |
|
Low Ripple Output |

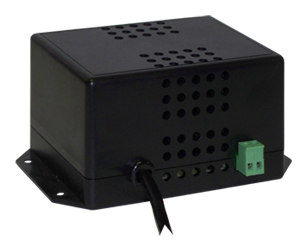

The
Auto Charge 1 is a miniature, completely automatic charger designed
to recharge or maintain the charge in batteries ranging from 5 to
20 ampere-hour. A high gain linear control maintains the output voltage
precisely and limits the output current to the rated value in order
to protect both the charger and the battery. Low ripple voltage output
permits use of this charger in noise sensitive applications.
|
|
| Specifications: | |
| Input: 120 volts 50/60 Hz, 0.5 amp max | |
| Output: 13.25 volts, D.C. | |
| Output Current: 0-1 amp. D.C. output determined by state of charge of batteries | |
| Charge Ripple: 0.020 volts max. | |
| Weight: 2 lbs | |
| Warranty: 3 Years | |
| Outline Drawing | |
| Instruction Manual (.pdf file, 84Kb) | |
