Automatically
Sequences Loads ON and OFF |
|
Automatically
Sheds Loads to Prevent Electrical System Overload |
|
Eliminates
Power Surges in Electrical System |
|
Controls
Load Relays |
|
Remote
Manual Override |
|
Energizes
External Relays by Supplying 12 Volts |
|
Load
Shed Priority Programmable |
|
Easy
Installation |
| |
|
| The

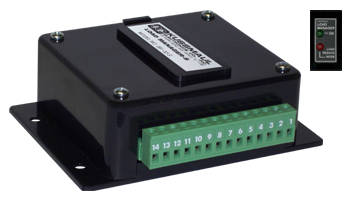

LOAD MANAGER S is a standard LOAD MANAGER in every way except that
the external relays are energized by supplying +12 volts to them.
This permits connection to relays that have one side of their coils
connected to ground.
|
| The
"LOAD MANAGER S" is a precision solid state controller which
sequentially switches "ON" seven relays at 1/2 second intervals.
Individual switches, which the user may install, can select a combination
of outputs. These switches may be used to turn the outputs "ON"
or "OFF" at any time. The "Master Control" switch
starts the sequential switch when it is turned "ON". Likewise
turning the "Master Control" switch "OFF" sequentially
de-energizes the loads at 1/2 second intervals. |
| In
addition the "LOAD MANAGER-S" monitors the vehicle's battery
voltage. When electrical loads exceed the alternator output, the voltage
drops. This is sensed by the "LOAD MANAGER-S" and the outputs
are individually de-energized. Up to 5 outputs are controlled. Only
as many are shut down as are required to maintain the system voltage.
The shut down sequence may be altered by programming switches internal
to the "LOAD MANAGER-S" and accessible through a removable
cap. An output indicator terminal is provided to permit connecting
an LED indicator which is energized whenever the load shed circuit
is functioning. A remote bypass switch may be installed to completely
bypass the "LOAD MANAGER-S" and operate the relays manually.
A plug-in connector simplifies installation.
|
| |
|
| Specifications:
|
| Input:
12 volts |
| Output:
To drive relay, 40 ohms |
| Weight:
5 oz |
| Warranty:
3 Years |
| |
| Outline
Drawing |
| Instruction Manual (.pdf file, 85Kb) |
