Automatically
Sequences Loads ON and OFF |
|
Automatically
Sheds Loads to Prevent Electrical System Overload |
|
Eliminates
Power Surges in Electrical System |
|
Controls
Load Relays |
|
Remote
Manual Override |
|
Reversible
Load Shed Sequencing |
|
Load
Shed Set-Point Adjustable |
|
Easy
Installation |
| |
|
| The

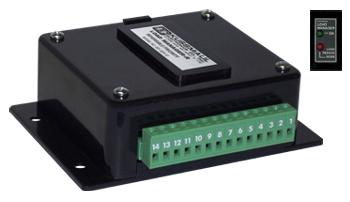

"LOAD MANAGER R" is a precision solid state controller which
sequentially switches "ON" seven relays at 1/2 second intervals.
Individual switches, which the user may install, can select a combination
of outputs. These switches may be used to turn the outputs "ON"
or "OFF" at any time. The "Master Control" switch
starts the sequential switch when it is turned "ON". Likewise
turning the "Master Control" switch "OFF" sequentially
de-energizes the loads at 1/2 second intervals.
|
| In
addition the "LOAD MANAGER R" monitors the vehicle's battery
voltage. When electrical loads exceed the alternator output, the voltage
drops. This is sensed by the "LOAD MANAGER R" and the outputs
are individually deenergized. Up to 5 outputs are controlled. Only
as many are shut down as are required to maintain the system voltage.
The shut down sequence is fixed by the wiring connections to the "LOAD
MANAGER R". An output indicator terminal is provided to permit
connecting an LED indicator which is energized whenever the load shed
circuit is functioning. A remote bypass switch may be installed to
completely bypass the "LOAD MANAGER R" and operate the relays
manually. A plug-in connector simplifies installation. |
| The
LOAD MANAGER R sheds loads in the conventional manner. A separate
input is provided which will reverse the sequence of load shedding.
This permits the LOAD MANAGER R to shut down loads from the rear to
the front of the vehicle when the vehicle is in transit. When at a
scene, the load shedding may be reversed so as to shed loads from
front to rear.
|
| Programming
jumpers are provided to easily program the load shedding point to
12.5, 12.0, 11.5 & 11.0 volts. |
| |
|
| Specifications:
|
| Input:
12 volts |
| Output:
To drive relay, 40 ohms |
| Weight:
5 oz |
| Warranty:
3 Years |
| |
| Outline
Drawing |
| Instruction
Manual (.pdf file, 72Kb) |
