Model # 091-35/10
Automatically Charges Battery
35 Amps for Charging Vehicle Battery
Built-In 10 Amp Battery Saver
Bar-Graph Indicates Charger Output
Designed Specifically for Single Battery Vehicles
Rugged Construction for Vehicle Mounting
No Water Boil Off

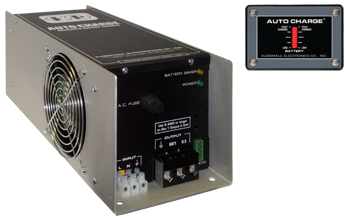

The Auto Charge 35/10 is a fully automatic battery charger with a very high output for vehicles with a single battery system. It is ruggedly constructed for mounting in the vehicle. A bar graph display is provided to indicate the state of charge of the battery.
A 10 ampere Battery Saver is provided to power rechargeable hand lights or other accessories. The Battery Saver automatically disconnects these accessory loads from the battery and powers them from an internal power supply. This removes the accessory loads from the battery during charging.

Specifications:
Input: 120 volts, 50/60 Hz, 10 amps
Output, Vehicle Battery: 12 volts, 35 amperes
Battery Saver: Output volts 12 VDC Output current 10 amps max.
Battery Charger: for 12 volt battery Output current 35 amps max.
Indicators: Power - indicates input power applied
Weight: 22 pounds
Warranty: 3 Years

Outline Drawing
Instruction Manual (.pdf file, 142Kb)
