Auto Charge 2000, Model #: 091-39-12

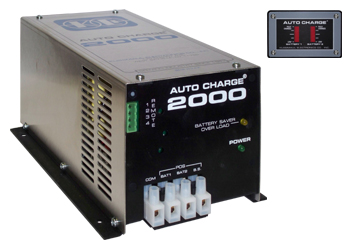

auto charge 2000
Blue Bullet 15 Amps for Charging Vehicle Batteries
Blue Bullet Built-In 3 Amp Battery Saver
Blue Bullet Automatically Charges Dual Banks of Batteries
Blue Bullet Remote Dual Bar Graph Indicator
Blue Bullet Designed Specifically for Vehicles with Dual Battery Systems
Blue Bullet Rugged Construction for Vehicle Mounting
Blue Bullet No Water Boil Off
Blue Bullet 3 Year Warranty
gray border
gray border
gray border
gray border
  • Charger
    Specifications
  • Instruction
    Manual
  • Related
    Products
Input: 120Vac, 50/60 Hz, 3.5 Amps Max
Input Fuse: 6 Amps, Fast Acting
Output: 12 Vdc, 15 Amps
Battery Saver: 12 Vdc, 3 Amps
Output Fuse (Recommended): 30 Amps
Voltage Sense: No Sense Lines Required
Power Indicator: Indicates Input Power Applied
Battery Saver Overload Indicator: Indicates Battery Saver Exceeded 3 Amps
Charge Indicator: Remote Dual Bar Graph Display
Weight: 17 lbs
Warranty: 3 Years
Printable Datasheet.pdf (654 Kb)
Auto Charge 2000, 12 Volt - 091-39-12.pdf (103 Kb)











Remote Dual Bar Graph Display - 091-39-IND
Auto Charge Dual Status Center - 091-189-2-12
Auto Charge Dual Precision Status Center - 091-189-2-12-3.5D
120 Volt Auto Pump - 091-9B-1
120 Volt Auto Pump with Auto Drain - 091-9B-1-AD
WP Auto Eject, 15 Amp - 091-18WP-120
WP Auto Eject, 20 Amp - 091-20WP-120
Super Auto Eject, 15 Amp - 091-55-15-120
Super Auto Eject, 20 Amp - 091-55-20-120



outline drawing
The Auto Charge 2000 is a high output dual battery charger that independently charges two batteries. Unique electronic sensing circuits sense the true battery voltage while eliminating the need for external sense wires. Charging is completely automatic. The maximum output of the charger is 15 amperes. The entire 15 amperes may be supplied to one battery or it may be divided between the two batteries. The lower charged battery is favored to receive more of the charge. When the two batteries are equally charged the charge is divided equally. When the batteries are fully charged, all charging stops. There is no overcharging and no water boil off.
A common problem with electrical systems is the loading on the battery caused by rechargeable hand-lights, portable radios and other loads. The Auto Charge 2000 handles these loads with a built-in “BATTERY SAVER”. Auxiliary electrical loads are connected to the "Battery Saver" output. During normal vehicle operation these auxiliary loads are connected to battery #1. When the vehicle is plugged in to A.C. power, the auxiliary loads are automatically removed from the battery and powered from the "BATTERY SAVER" circuit. A maximum of 3 amperes is available from the "BATTERY SAVER". An automatic overload protector limits the 3 ampere output. A yellow overload indicator is illuminated whenever the "BATTERY SAVER" output limit is exceeded.
The Auto Charge 2000 indicator may be mounted remotely from the charger assembly. Connected by 4 wires to the charger, the indicator contains 2 bar graph displays - one for each battery. The displays indicate the “state of charge” and the general condition of the batteries. An old or defective battery is displayed as a low reading which remains low after an extended charging period. A discharged battery also is indicated by a low reading. Precise indications of battery condition appear, independent of the distance between the charger and the display.
