Model # 091-45

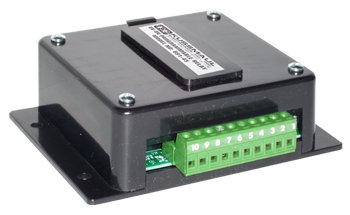

Monitors Battery System Voltage Detects Under Voltage and Warns for Possible Dead Battery Easy-to-Use Program Switches Set Under Voltage Trip Point Detects Over Volateg and Warns for Possible Battery Boil Over Provides Relay Contacts for Over Volateg and Under Voltage     The UV-OV Relay Precise - Programmable Voltage Detector monitors the battery system voltage and detects both over voltage and under voltage conditions. The under voltage trip point is programmed by the use of 3 "DIP" switches, which provide for 8 possible settings ranging from 11.44 Volts to 13.01 Volts. Over voltage trip point programming is done similarly with 8 possible settings ranging from 13.66 Volts to 15.06 Volts. These "DIP" switches are easily accessed by removing a snap-on window cover at the top of the unit. Heavy duty, relay contacts are provided for both conditions. These contacts may be hooked up to warning devices indicating abnormal conditions. Three LED indicators are provided under the snap-on cover for system trouble shooting, yellow for under voltage, green for normal, and red for over voltage.     Specifications: Input Power: 10 to 17 Volts D.C. (battery system) Detected Conditions: Under Voltage and Over Voltage Under Voltage Program Range: 11.44 to 13.01 VDC in 7 discrete 0.22 VDC increments Over Voltage Program Range: 13.66 to 15.06 VDC in 7 discrete 0.20 VDC increments Programming Device: 3 "DIP" Switches for Under Voltage, and 3 "DIP" Switches for Over Voltage Over Voltage Output: Relay Contacts, 15 Amperes Resistive Under Voltage Output: Relay Contacts, 15 Amperes Resistive Mating Connector: 10 Pin Quick Disconnect with Screw Terminals (supplied with unit) Indicators: Located Directly Under Snap-On Window Cover Under Voltage - Yellow, Normal - Green Over Voltage - Red Weight: 0.5 lbs. Warranty: 3 Years   Outline Drawing Instruction Manual (.pdf file, 82Kb)
