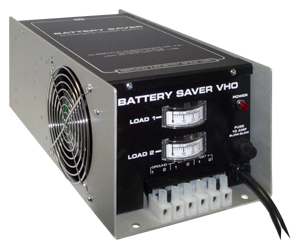

Battery Saver VHO, Model #: 091-51-12

	40 Amps Output
	dual output, 20 amps per load
	Not for Charging Batteries
	Provides High Current, D.C. Power to Rechargeable Hand Lights and Accessories
	Automatically Connects Loads to Battery When A.C. Power is Removed
	3 Year Warranty

The "BATTERY SAVER VHO" is a power supply with a transfer relay, which is installed in a vehicle to provide power for the 12 volt accessories. Whenever the 120 VAC power is applied to the vehicle, the "BATTERY SAVER VHO" generates +12 VDC and powers the accessories. When the AC power is removed, the loads are returned to the battery. Dual 20 amp outputs are
provided. This permits connecting the accessory loads to two batteries or alternatively operating all accessories from the same battery. The effectiveness of the vehicle's battery charger is increased by removing all the constant loads from the battery and permitting the entire charger capacity to be utilized for battery charging.
For "BATTERY SAVER" loads that do not tolerate ripple, please contact our engineering department for more information.
