Super Trailer Eject, Model #: 091-55-20-120T
super trailer eject
Blue Bullet 120 Volts AC, 20 Amps
Blue Bullet Automatically disconnects shoreline
Blue Bullet Designed specifically for vehicles that do Not have a "Starter Signal"
Blue Bullet Completely sealed
Blue Bullet Eliminates broken shoreline
Blue Bullet 2 year warranty
gray border
gray border
gray border
gray border
  • Super Trailer Eject
    Specifications
  • Colored
    Covers
  • Instruction
    Manual
  • Related
    Products
Input: 12 Vdc
Output Connector Voltage: 120 Vac
Output Connector Current: 20 Amps
Weight: 4 lbs
Warranty: 2 Years

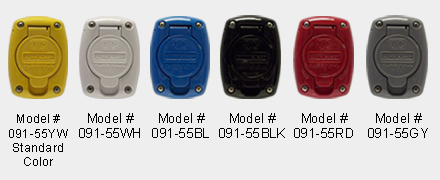

colored covers
Super Trailer Eject, 120 Vac, 20 Amp - 091-55-20-120T.pdf (151 Kb)











Super Trailer Eject 120 Vac, 15 Amp - 091-55-15-120T
Super Trailer Eject 120 Vac, 15 Amp, Back Wire - 091-55-15-120T-BW
Super Trailer Eject 250 Vac, 12 Vdc, 15 Amp - 091-55-15-DCT
Super Trailer Eject 250 Vac, 12 Vdc, 15 Amp, Back Wire - 091-55-15-DCT-BW
Super Trailer Eject 120 Vac, 20 Amp, Back Wire - 091-55-20-120T-BW
E-Z Mounting Plate - 091-185-009
Power Cord Reel - L4545 12 3 3
Retractile Cord, 12 AWG - 091-18D-12
Rubber Connector Protector - 091-55-069
Mating Female Connector - 5-20P-H


outline drawing
The Super Trailer Eject is a special version of the standard Super Auto Eject, automatic shoreline disconnect, designed specifically for installations that do not have a "Start Signal" available to initiate ejection of the shoreline. The unit is wired to the brake lights, and ejection occurs when the driver steps on the foot brake to shift into gear. An internal switch prevents the solenoid from operating when no shoreline is detected.
