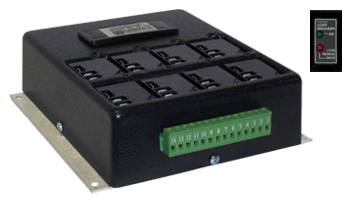

Load Manager Mark II, Model #: 091-60A

	Sheds Up to 8 Loads
	Automatically Sequences Lights ON and OFF
	Automatically Sheds Loads to Prevent Electrical Overload
	Eliminates Power Surges in Electrical System
	Contains 8 Load Relays, 30 Amp Load per Relay
	Remote Manual Override
	Load Shed Priority Programmable
	3 Year Warranty

The "LOAD MANAGER MARK II" is a precision solid-state controller, which sequentially switches 8 self-contained relays at 1/2 second intervals. Individual switches, which the user may install, can select the combination of outputs. These switches may be used to turn the outputs "ON" or "OFF" at any time. The "Master Control" switch starts the sequential switching when it is turned "ON". Likewise turning the "Master Control" switch "OFF" sequentially de-energizes the loads at 1/2 second intervals.
In addition the "LOAD MANAGER MARK II" monitors the vehicle's battery voltage. When electrical loads exceed the alternator output, the voltage drops. The "LOAD MANAGER MARK II" senses this and the outputs are individually de-energized. Up to 5 outputs are controlled. Only as many are shut down as are required to maintain the system voltage. The shut down sequence may be altered through programming switches internal to the "LOAD MANAGER MARK II" and accessible through a removable cap.
An indicator is included to signal when the "LOAD MANAGER MARK II" is active and when it is in the "LOAD REDUCE" mode.
