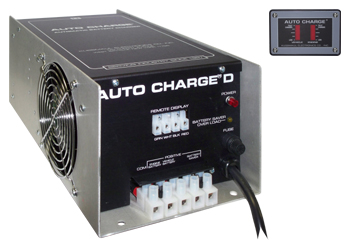

Auto Charge D, Model #: 091-66-12
auto charge d
Blue Bullet 25 Amps for Charging Vehicle Batteries
Blue Bullet 3 Amps for Engine Battery
Blue Bullet 5 Amps for Battery Saver
Blue Bullet Automatically Charges Dual Banks of Batteries
Blue Bullet Designed Specifically for Vehicles with Dual Battery Systems
Blue Bullet Electronic Remote Battery Sensing
Blue Bullet No Water Boil Off
Blue Bullet 3 Year Warranty
gray border
gray border
gray border
gray border
  • Charger
    Specifications
  • Instruction
    Manual
  • Related
    Products
Input: 120 Vac, 50/60 Hz, 8 Amps Max
Input Fuse: 12 Amps, Fast Acting
Output: Vehicle Battery - 12 Vdc, 25 Amp, Engine Battery - 12 Vdc, 3 Amps
Battery Saver: 12 Vdc, 5 Amps
Output Fuse (Recommended): Vehicle Battery - 50 Amps
                                                         Engine Battery - 6 Amps
Power Indicator: Indicates Input Power Applied
Battery Saver Overload Indicator: Indicates Battery Saver Exceeded 5 Amps
Charge Indicator: Remote Dual Bar Graph Display
Weight: 27 lbs
Warranty: 3 Years
Printable Datasheet.pdf (634 Kb)
Auto Charge D, 12 Volt - 091-66-12.pdf (158 Kb)











Remote Dual Bar Graph Display - 091-66-IND
Auto Charge Dual Status Center - 091-189-2-12
Auto Charge Dual Precision Status Center - 091-189-2-12-3.5D
120 Volt Auto Pump - 091-9B-1
120 Volt Auto Pump with Auto Drain - 091-9B-1-AD
WP Auto Eject, 15 Amp - 091-18WP-120
WP Auto Eject, 20 Amp - 091-20WP-120
Super Auto Eject, 15 Amp - 091-55-15-120
Super Auto Eject, 20 Amp - 091-55-20-120



outline drawing
The Auto Charge D is a dual battery system automatic battery charger designed especially for vehicles with a DDEC engine control and a separate engine battery. These vehicles have a unique problem. The vehicle may have a number of batteries connected in parallel in order to obtain sufficient capacity for the electrical loads. The engine usually has only a single battery, isolated from the vehicle battery and dedicated to powering the engine electronic controls. This configuration requires complete isolation between the chargers and automatic charging of both batteries. Also, a high capacity charger is required for the vehicle while only a small amount of charge is required to maintain the engine battery.
A dual bargraph display is provided to indicate the state of charge of each battery. The display is conveniently labeled “VEHICLE” and “ENGINE” battery.
A 5 ampere "Battery Saver" is provided to power rechargeable handlights or other accessories. The "Battery Saver" automatically disconnects these accessory loads from the battery and powers them from an internal power supply. This removes the accessory loads from the battery during charging.
