A
Simple Load Manager for 2 Loads |
|
Monitors
12 Volt System and Detects Low Voltage |
|
Dual
Relay Output, 30 Amp Contacts |
|
Automatic
Reset when Voltage Rises |
| |
|
| The

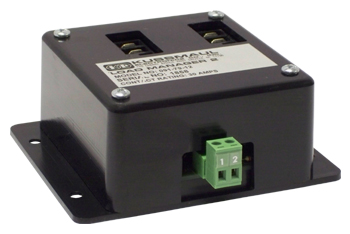

LOAD MANAGER 2 is a simple, compact assembly for installation in applications
that require the shedding of only 2 loads. The D.C. input is monitored
and when this voltage drops below the set point, one relay is operated.
When the voltage drops an additional .5 volts, the second relay is
energized. The relays have both normally open and normally closed
contacts available for complete flexibility in wiring. Easily installed,
the LOAD MANAGER 2 may be adjusted in the field for a range of set
points varying from 10.5 to 13 volts D.C.
|
| |
|
| Specifications:
|
| Input
nominal: 12 volts D.C. |
| Set
point: 11.5 +/-.05 volts D.C. |
| Adj.
range: 10.5 to 13 volts D.C. |
| Output
Relay: normally closed, 30 amp, normally open, 30 amp. |
| Weight:
6 oz. |
| Warranty:
3 Years |
| |
| Outline
Drawing |
| Instruction
Manual (.pdf file, 71Kb) |
