Senses 12 Volt D.C. Voltage |
|
Detects High Voltage |
|
Detects Low Voltage |
|
Enables High Idle Control |
|
Plug-In Connectors for Easy Wiring
and Installation |
|
Interchangeable with Competitive
Units |
| |
|

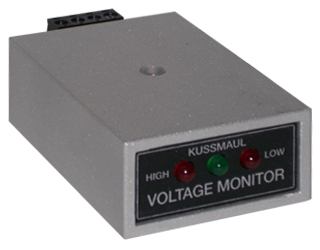

| The
Voltage Monitor is housed in a rugged aluminum enclosure and designed
for easy mounting. Three LEDs indicate system status. Under normal
conditions the center, green LED is illuminated. If the system voltage
rises above 15.6 volts, the green LED is extinguished and the red
LED labeled “HIGH” illuminates. If, however, the voltage
drops below 12.5 volts, the green LED is extinguished and the red
“LOW” LED illuminates. Under the low voltage condition the
Voltage Monitor signals the companion Engine Idler Control to switch
into the High Idle Mode. The Voltage Monitor is designed to be completely
interchangeable with competitive devices.
|
| |
