Engine Idler, Model #: 091-84-005
engine idler
Blue Bullet Controls Solenoid Valve or Relay
Blue Bullet Interlocks with Park/Neutral Switch and Brake Pedal Switch
Blue Bullet Switches to Select High Idle Operation
Blue Bullet Plug-In Connectors for Easy Wiring and Installation
Blue Bullet Interchangeable with Competitive Units
Blue Bullet 3 Year Warranty

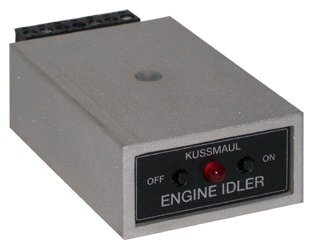

The Engine Idler Control is housed in a rugged aluminum enclosure, and designed for easy mounting. Two miniature pushbutton switches are provided on the front panel. One switch turns the output “ON” while the other turns it “OFF”. A single LED indicates that the control is in the high idle mode. Interlock inputs from the park neutral switch, or the brake pedal switch, lock out the high idle function, while the vehicle is moving.
The output operates a solenoid valve, which may be used to control vacuum to an actuator, that advances the throttle. Alternatively, the output can operate a relay to couple this control to an electronic engine control. The Engine Idler Control is designed to be completely interchangeable with competitive devices.
gray border
gray border
gray border
gray border
  • Engine Idler
    Specifications
  • Instruction
    Manual
  • Related
    Products
Input: 12 Vdc
Indicator: Red LED - Indicates Unit is in High Idle Mode
Weight: .25 lbs
Warranty: 3 Years








Engine Idler, 091-84-005.pdf (69 Kb)











Auto Throttle 1 - 091-84
Voltage Monitor - 091-84-004
Pressure Actuator (Pull) - 091-84-PA
Pressure Actuator (Push) 091-84-PAP
Solenoid Valve - 091-84-PV
Vacuum Actuator - 091-84-VA
Vacuum Valve - 091-84-VV
Relay - REL0332
System Kit - Diesel Using Air Pressure (Pull) - 091-84-DS.pdf (41 Kb)
System Kit - Diesel Using Air Pressure (Push) - 091-84-DSP.pdf (41 Kb)
System Kit - Gasoline Using Vacuum - 091-84-GS.pdf (91 Kb)
System Kit - 95-99 GMC 6.5L Diesel with ECM - 091-84-GM1.pdf (181 Kb)
outline drawing
