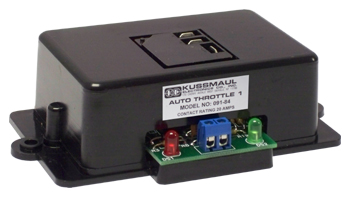

Auto Throttle 1 is a voltage detector designed to operate any throttle
system to increase engine speed when insufficient alternator output
drops the battery voltage. Time delays are provided to inhibit the
unit from operating when the voltage drops for only a short period
of time. Then, once a high idle is produced, it is maintained for
5 minutes. This reduces the ON/OFF cycling.
|
| The
output of the Auto Throttle 1 is the closure of a relay with 20 ampere
contacts. This contact closure may be utilized to operate any actuator
or switch the input to an electronic engine control. Operation occurs
when the unit senses less than 12.5 volts for a minimum of 15 seconds.
The relay then operates to produce the high idle and remains energized
for at least 5 minutes or until the voltage rises above 13.4 volts,
whichever occurs later. |
| The
Auto Throttle 1 senses battery voltage and provides the necessary
control signals to speed up the engine. It does not provide the mechanism
to increase the speed, this is supplied by the installer.
|
| |
|
| Specifications:
|
| Input:
12 volts, .1 amps max |
| Setpoint:
ON at 12.5 volts (field adjustable), OFF at 13.4 volts |
| ON
Delay: 15 seconds |
| OFF
Delay: 5 minutes Relay Contact Rating: N.O. 30amps N.C. 20 amps
|
| Indicator:
Red LED, output ON, Low Voltage sensed, Green LED, output OFF, Voltage
normal |
| Weight:
5 oz |
| Warranty:
3 Years |
| |
