Pump Plus 1200, Model #: 091-9-1200

	40 amps for charging vehicle batteries
	Automatically charges battery
	Optional auto charge deluxe status center
	Designed specifically for vehicles with single battery systems
	Auto pump maintains air pressure in the vehicle's brake system
	May be operated as a D.C. compressor from the battery or switched so the compressor will only run with A.C. power applied

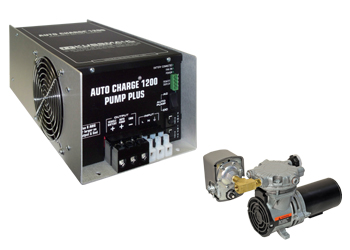

The Pump Plus 1200 is a small air compressor and a completely automatic battery charger. The compressor is a standard Auto Pump. The automatic charger maintains 1 bank of batteries with a maximum output current of 40 amps.
The Pump Plus 1200 charger senses the batteries in the vehicle and recharges exactly as much as required. When the batteries are fully charged, all charging stops. The state of charge of the batteries is indicated on a remotely located bar graph display whenever power is applied to the vehicle.
A Selector Switch is provided on the charger to operate the compressor either in D.C. mode or in A.C. mode. In either switch position the compressor operates from the vehicle's battery. When "D.C." is selected, the compressor operates whenever the pressure switch senses low system pressure. This is useful when parking the vehicle away from the 110 volt input power. For those operators who wish to limit compressor operation to the times when the shoreline is connected to the vehicle, the Selector Switch should be placed in the "A.C." position. This will operate the compressor when the A.C. power is available, but shuts off the compressor when the shoreline is removed.
This charger has three remote indicator options. Option 1, is the standard, 10 Element, Single Bar Graph Display. This indicator will come with the charger unless otherwise specified. Option 2, is the Auto Charge Deluxe Status Indicator. This indicator has a digital voltage and ampere display, a 5 segment bar graph display to indicate the output current, and 4 LED's to show the condition of the batteries. Order 091-9-1200-194 for this option. Or Option 3, is the Watertight Auto Charge Deluxe Status Center. This is the same indicator as Option 2, only the indicator is housed in a watertight bezel. The bezel is available in 6 different colors, Red, White, Blue, Yellow, Gray, and Black. Specify color choice when ordering. Order 091-9-1200-194-WT for this option.
