12V HP, Horizontal Mount, Model #: 091-9-12V-HP-HOR

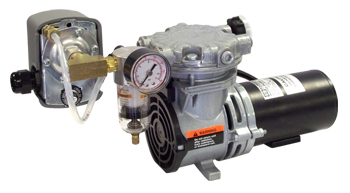

auto pump 12 volt horizontal mount
  • 125 PSI Max Rating, 12V, 11A
  • Vehicle mount compressor ensures air brake system is properly pressurized for immediate
    truck departure from station
  • Auto Drain Built-in: Automatically purges water separator bowl every time compressor cycles off
  • Pressure switch regulated operation automatically senses low pressure in air system and restores proper pressure, preventing brake lock-up
  • Pressure gauge provides system status
  • No interference with engine mounted air compressor
  • Factory set PSI actuation points: 105 "On", 125 "Off" with Adjustment differential 20 PSI
  • Sealed ball bearings for long service life
  • 15A circuit breaker installed in pressure switch
  • 1 year warranty

  • Auto Pump 12 Volt HP Horizontal Mount
    Specifications
  • Downloadable
    Files
  • Outline
    Drawing
  • Related
    Products
Input: 12 Vdc @ 11 Amps Max
Output: .30 SCFM @ 80 PSI
               .35 SCFM @ 60 PSI
Motor Type: Perm. Magnet .10 HP
Pressure Switch: Adjustable Set-Point
                                 Factory set to 105 PSI Cut-In, 125 PSI Cut-Out
Weight: 7 lbs
Warranty: 1 Year





Instruction Manual.pdf (943 Kb)
Product Specifications.doc (139 Kb)











outline drawing 091-9-12v-hp-hor
Auto Pump 12 Volt - 091-9-12V
Auto Pump 12 Volt with Auto Drain - 091-9-12V-AD
Auto Pump Timer - 091-150
Auto Pump 12 Volt HP, Vertical Mount - 091-9-12V-HP-VER
Mounting Plate for Auto Pump 12 Volt and 12 Volt HP - 091-9-12V-HP-H
Auto Pump AC with Auto Drain - 091-9B-1
Mounting Plate for Auto Pump AC - 091-9H-1
AC Auto Pump Timer - 091-150-115
Auto Pump HP - 091-9HP
Auto Pump HP with Auto Drain - 091-9HP-AD
Mounting Plate for Auto Pump HP - 091-9HP-H
Auto Pump Tester - 091-205


The Auto Pump 12 Volt HP, Air Compressor system, is a compact electric motor operated single cylinder air compressor designed specifically for installation on vehicles with air brakes. During long idle periods of the vehicle when even the slightest seepage can cause an air brake system pressure to drop below the brake lockup pressure, the Auto Pump automatically starts to maintain the pressure. The unit also has an automatic water separator that drains the water from the separator bowl whenever the pump is cycled.
The Auto Pump motor is directly coupled to the compressor section eliminating all belts and pulleys assuring long life and reliable operation. A heavy duty pressure switch is adjusted to start the compressor when the system pressure drops below 105 psi and stops the compressor when 125 psi is attained. The start up pressure is field adjustable - the pressure differential between start up and stopping is fixed. Please read and follow the installation instructions carefully. The Auto Pump requires no routine maintenance. A careful installation will assure years of trouble free operation.
This Auto Pump is for Horizontal Mounting Only. For Vertical Mounting, use Model 091-9-12V-HP-VER.
