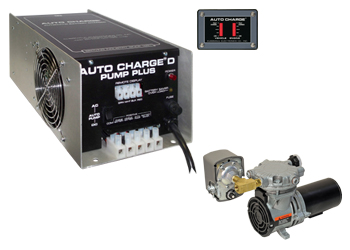

Auto Charge D Pump Plus, Model #: 091-9-DPP
auto charge d pump plus
Blue Bullet 25 amps for charging vehicle batteries
Blue Bullet 3 amps for engine battery
Blue Bullet 5 amps for battery saver
Blue Bullet Designed specifically for vehicles with dual battery systems
Blue Bullet Auto pump maintains air pressure in the vehicle's brake system
Blue Bullet May be operated as a D.C. compressor from the battery or switched so the compressor will only run with A.C. power applied
gray border
gray border
gray border
gray border
  • Charger
    Specifications
  • Auto Pump
    Specifications
  • Instruction
    Manual
  • Related
    Products
Input: 120 Vac, 50/60 Hz, 8 Amps Max
Input Fuse: 12 Amps, Fast Acting
Output: Vehicle Battery - 12 Vdc, 25 Amp, Engine Battery - 12 Vdc, 3 Amps
Battery Saver: 12 Vdc, 5 Amps
Output Fuse (Recommended): Vehicle Battery - 50 Amps
                                                         Engine Battery - 6 Amps
Battery Saver Overload Indicator: Indicates Battery Saver Exceeded 3 Amps
Weight: 27 lbs
Warranty: 3 Years
Outline Drawing: Charger Outline Drawing Shown to the right, click on                                 Charger Outline Drawing to see Auto Pump Outline Drawing
Printable Datasheet.pdf (1,300 Kb)
Input: 12 Vdc @ 12 Amps Max
Output: .30 SCFM @ 80 PSI
               .35 SCFM @ 60 PSI
Motor Type: Perm. Magnet .10 HP
Pressure Switch: Adjustable Set-Point
                                 Factory set to 75 PSI Cut-In, 95 PSI Cut-Out
Weight: 7 lbs
Warranty: 1 Year
Outline Drawing: Charger Outline Drawing Shown to the right, click on                                 Charger Outline Drawing to see Auto Pump Outline Drawing
Printable Datasheet.pdf (1,300 Kb)

Auto Charge D Pump Plus - 091-9-DPP.pdf (228 Kb)











Auto Charge Dual Status Center - 091-189-2-12
Auto Charge Dual Precision Status Center - 091-189-2-12-3.5D
12 Volt Auto Pump with Auto Drain - 091-9-AD
Mounting Plate for 12 Volt Auto Pump - 091-9H
WP Auto Eject, 15 Amp - 091-18WP-120
WP Auto Eject, 20 Amp - 091-20WP-120
Super Auto Eject, 15 Amp - 091-55-15-120
Super Auto Eject, 20 Amp - 091-55-20-120




outline drawing
The Auto Charge D Pump Plus is a small air compressor and a dual battery system automatic battery charger designed especially for vehicles with a DDEC engine control and a separate engine battery. The compressor is a standard Auto Pump. These vehicles have a unique problem. The vehicle may have a number of batteries connected in parallel in order to obtain sufficient capacity for the electrical loads. The engine usually has only a single battery, isolated from the vehicle battery and dedicated to powering the engine electronic controls. This configuration requires complete isolation between the chargers and automatic charging of both batteries. Also, a high capacity charger is required for the vehicle while only a small amount of charge is required to maintain the engine battery.
A dual bar graph display is provided to indicate the state of charge of each battery. The display is conveniently labeled "VEHICLE" and "ENGINE" battery.
A 5 Amp Battery Saver is provided to power rechargeable hand lights or other accessories. The Battery Saver automatically disconnects these accessory loads from the battery and powers them from an internal power supply. This removes the accessory loads from the battery during charging.
A Selector Switch is provided on the charger to operate the compressor either in D.C. mode or in A.C. mode. In either switch position the compressor operates from the vehicle's battery. When "D.C." is selected, the compressor operates whenever the pressure switch senses low system pressure. This is useful when parking the vehicle away from the 110 volt input power. For those operators who wish to limit compressor operation to the times when the shoreline is connected to the vehicle, the Selector Switch should be placed in the "A.C." position. This will operate the compressor when the A.C. power is available, but shuts off the compressor when the shoreline is removed.
