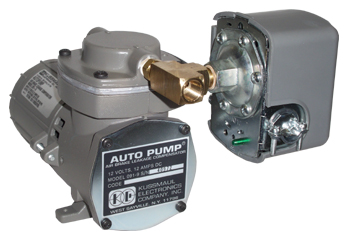

Auto Pump 12 Volt, Model #: 091-9
auto pump 12 volt
Blue Bullet 100 PSI Max
Blue Bullet Maintains air pressure in the vehicle brake system
Blue Bullet Completely automatic operation controlled by integral pressure switch
Blue Bullet No interference with operation of the engine mounted air compressor
Blue Bullet Small size, mounts in any dry location
Blue Bullet 1 year warranty
gray border
gray border
gray border
gray border
  • Auto Pump 12 Volt
    Specifications
  • Instruction
    Manual
  • Related
    Products
Input: 12 Vdc @ 12 Amps Max
Output: .30 SCFM @ 80 PSI
               .35 SCFM @ 60 PSI
Motor Type: Perm. Magnet .10 HP
Pressure Switch: Adjustable Set-Point
                                 Factory set to 75 PSI Cut-In, 95 PSI Cut-Out
Weight: 7 lbs
Warranty: 1 Year




Auto Pump 12 Volt - 091-9.pdf (149 Kb)











Mounting Plate for Auto Pump 12 Volt - 091-9H
Auto Pump Timer - 091-150
Auto Pump 12 Volt HP, Horizontal Mount - 091-9-12V-HP-HOR
Mounting Plate for Auto Pump 12 Volt HP - 091-9-12V-HP-H
Auto Pump AC - 091-9B-1
Auto Pump AC with Auto Drain - 091-9B-1-AD
Mounting Plate for Auto Pump AC - 091-9H-1
AC Auto Pump Timer - 091-150-115
Auto Pump HP - 091-9HP
Auto Pump HP with Auto Drain - 091-9HP-AD
Mounting Plate for Auto Pump HP - 091-9HP-H
Auto Pump Tester - 091-205
outline drawing 013
The 12 Volt Auto Pump is a small air compressor designed to mount on vehicles with air brakes to maintain the air pressure in the air brake system while the vehicle is not in use. A pressure switch senses when the system pressure drops and starts the compressor which then runs until pressure is restored. All ball bearing construction, lubricated for life, assures reliable operation and requires no servicing.
