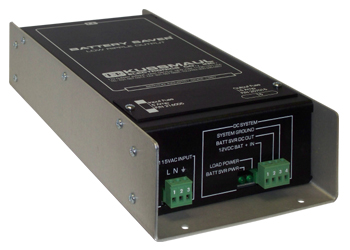

Battery Saver Low Ripple, Model #: 091-92-12
battery saver low ripple
Blue Bullet 10 Amps Output
Blue Bullet Ideal for Powering Computer & MDT
Blue Bullet Relay Automatically Switches Load from Battery to Power Supply when A.C. Line is Applied
Blue Bullet Removes Load from Vehicle Battery
Blue Bullet Low Ripple, Regulated Output
Blue Bullet Simple Installation
Blue Bullet 3 Year Warranty
The Model 091-92-12, "BATTERY SAVER LOW RIPPLE," is a power supply with a load transfer relay. Inputs are the +12 volts from the vehicle's battery and 120 volts A.C. shore power. An MDT or computer may be connected to the output terminal. When shore power is applied a well-regulated switching power supply converts the 120 VAC to +12 VDC and a relay transfers the load from the battery to the power supply. This "BATTERY SAVER" provides low ripple D.C. power to ensure no interference while powering sensitive electronic equipment.
gray border
gray border
gray border
gray border
  • Battery Saver
    Specifications
  • Instruction
    Manual
  • Related
    Products
Input: 120 Vac, 50/60 Hz, 1.8 Amps Max RMS, 12 Vdc from Battery
Input Fuse: 5 Amps
Output: 12 Vdc, 10 Amps
Output Ripple: 30 Millivolts, AC, RMS
Output Fuse (Recommended): 20 Amps
Electronic Current Limit: 10 Amps
Indicator: Power "ON," LED
Weight: 5 lbs
Warranty: 3 Years
Printable Datasheet.pdf (609 Kb)


Battery Saver Low Ripple, 12 Volt - 091-92-12.pdf (100 Kb)
