Amp Contacts |
|
Load
May be Turned ON and OFF from Multiple Locations |
|
Indicator
Output Indicates Position of Relay |
|
Easy
Installation |
| |
|
| The

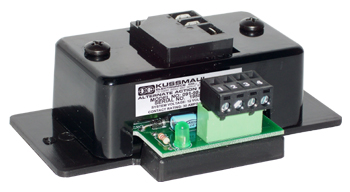

Model 091-98-12 Alternate Action Relay is designed to remotely turn
a load ON and OFF by grounding an input to the relay. The application
of a ground energizes the relay and turns the load "ON".
A second input to the same terminal de-energizes the relay and turns
the load "OFF". Both inputs may come from the same switch
or from any number of switches in parallel. Thus a load may be turned
"ON" from one location and turned "OFF" from another.
An output on the Alternate Action Relay operates a remote indicator
to indicate when the load is energized.
|
| |
|
| Specifications:
|
| Input
nominal: 12 volts D.C. |
| Output
relay: 30 amperes |
| Indicator
output: .5 amperes, grounding |
| Weight:
4 oz |
| Warranty:
3 Years |
| |
| Outline
Drawing |
| Instruction
Manual (.pdf file, 37Kb) |
