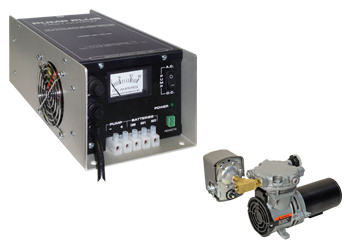

Pump Plus HO, Model #: 091-9C-HO
pump plus ho
Blue Bullet 11 amps for charging vehicle batteries
Blue Bullet Automatically charges dual banks of batteries
Blue Bullet Optional remote indicator
Blue Bullet Designed specifically for vehicles with dual battery systems
Blue Bullet Auto pump maintains air pressure in the vehicle's brake system
Blue Bullet May be operated as a D.C. compressor from the battery or switched so the compressor will only run with A.C. power applied
gray border
gray border
gray border
gray border
  • Charger
    Specifications
  • Auto Pump
    Specifications
  • Instruction
    Manual
  • Optional
    Indicator
  • Related
    Products
Input: 120 Vac, 50/60 Hz, 2.5 Amps Max
Input Fuse: 5 Amps, Fast Acting
Output: 12 Vdc, 11 Amps
Output Fuse (Recommended): 22 Amps
Power Indicator: Indicates Input Power Applied
Weight: 12 lbs
Warranty: 3 Years
Outline Drawing: Charger Outline Drawing Shown to the right, click on                                 Charger Outline Drawing to see Auto Pump Outline Drawing
Printable Datasheet.pdf (1,420 Kb)


Input: 12 Vdc @ 12 Amps Max
Output: .30 SCFM @ 80 PSI
               .35 SCFM @ 60 PSI
Motor Type: Perm. Magnet .10 HP
Pressure Switch: Adjustable Set-Point
                                 Factory set to 75 PSI Cut-In, 95 PSI Cut-Out
Weight: 7 lbs
Warranty: 1 Year
Outline Drawing: Charger Outline Drawing Shown to the right, click on                                 Charger Outline Drawing to see Auto Pump Outline Drawing
Printable Datasheet.pdf (1,420 Kb)

Pump Plus HO - 091-9C-HO.pdf (136 Kb)

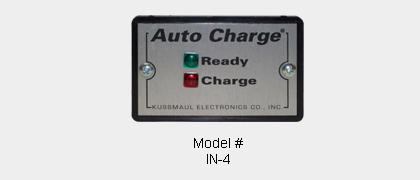

optional indicator led indicator
Auto Charge Dual Status Center - 091-189-2-12
Auto Charge Dual Precision Status Center - 091-189-2-12-3.5D
12 Volt Auto Pump with Auto Drain - 091-9-AD
Mounting Plate for 12 Volt Auto Pump - 091-9H
WP Auto Eject, 15 Amp - 091-18WP-120
WP Auto Eject, 20 Amp - 091-20WP-120
Super Auto Eject, 15 Amp - 091-55-15-120
Super Auto Eject, 20 Amp - 091-55-20-120




outline drawing
The Pump Plus HO is a small air compressor and a completely automatic battery charger. The compressor is a standard Auto Pump. The automatic charger, however, has a maximum output of 11 amperes.
The air compressor is designed to mount on vehicles with air brakes to maintain the air pressure in the air brake system while the vehicle is not in use. A pressure switch senses the system pressure and operates the compressor whenever the pressure drops below a predetermined level.
Designed to mount on the vehicle, the automatic battery charger keeps the vehicle's batteries fully charged.
The battery charger is completely automatic and is for vehicles with dual battery systems. The batteries are automatically charged and maintained fully charged while still being isolated from each other. This new and improved unit contains 2 independent chargers to sense and control the current to the batteries. Thus parasitic loads on one battery have no effect on the other battery. Provision is made also for the connection of remote indicating lights
A Selector Switch is provided on the charger to operate the compressor either in D.C. mode or in A.C. mode. In either switch position the compressor operates from the vehicle's battery. When "D.C." is selected, the compressor operates whenever the pressure switch senses low system pressure. This is useful when parking the vehicle away from the 110 volt input power. For those operators who wish to limit compressor operation to the times when the shoreline is connected to the vehicle, the Selector Switch should be placed in the "A.C." position. This will operate the compressor when the A.C. power is available, but shuts off the compressor when the shoreline is removed.
