Inverter - Charger, Model #: 430-1200-0

1200 watt Continuous / 2500 watt surge / 55 Amp Built - in, high output 3 stage charger for rapid battery bank replenishment - programmable for Gel - cell, flooded lead - acid or AGM battery Automatic low voltage shutdown circuit prevents damage to batteries due to over - discharge when using inverter function Heavy duty powder coated aluminum construction and conformal coated circuitry 3 year warranty

• Inverter-Charger 1200W
  Specifications
• Downloadable
  Files

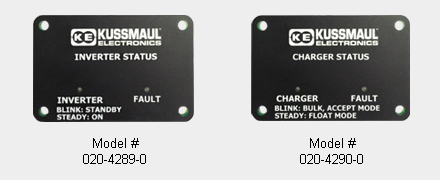

• Optional
  Displays
• Outline
  Drawing
• Related
  Products

Inverter Input: 11-14 Vdc, 120 Amps Max
Charger Input: 115 Vac, 60 Hz., 13 Amps Max
Inverter Output: 1200 Watts (Cont.) / 2500 Watts (Surge)
Charger Output: 3 Stage, 55 Amps Max
Weight: 32 lbs
Warranty: 3 Years

Datasheet.pdf (1,960 Kb)
Instruction Manual.pdf (1,367Kb)

Inverter-Charger, 1800W/85A - 430-1800-0
Inverter-Charger, 2500W/100A - 430-2500-0
Inverter-Charger, 3000W/105A - 430-3000-0
Inverter, 1000W - 430-1000-0
Inverter, 1500W - 430-1500-0
Inverter, 2000W - 430-2000-5

The 430-1200-0, Inverter-Charger, uses 12 volt battery power to produce pure sine wave 120 and 240V power in mobile applications, and recharges vehicle batteries when an external AC source is available. The circuitry and construction are field-proven to provide reliable power in harsh environments and in rugged mobile and industrial applications.
